LED Illuminated PCB Push Button Switch

Related Products

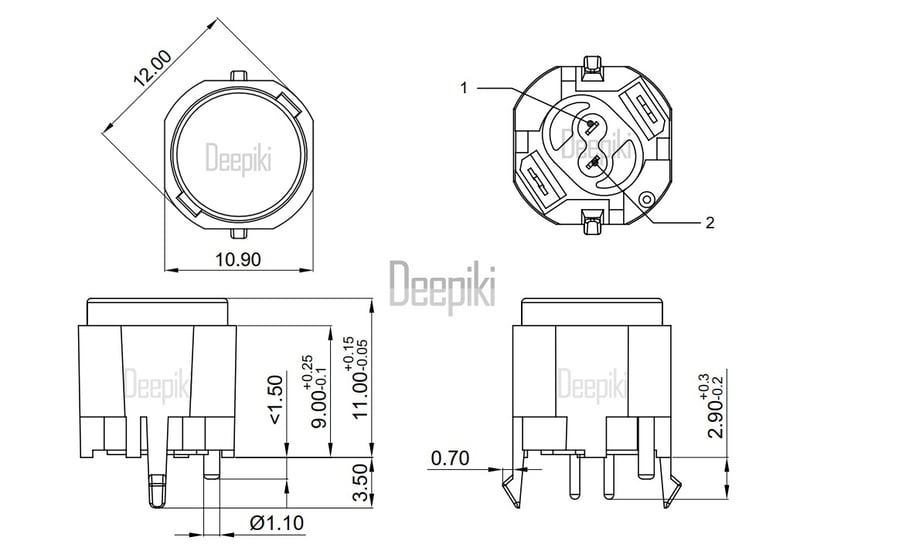

Technical Drawing

This specification describes"Push Button Switches".

Rated Current:10mA/100mA,2V DC/30V DC

Contact Resistance:50mΩ Max

Insulation Resistance:10GΩ min/1000V

Electrical life:50,000 Cycles

OperatingForce:1.5N,2.5N,3.5N,5N,7N,9N, 20N(Available on request)

Operating environment: -40°C to 85°C
